Instructions on how to access the controller's HMI panels using a VNC viewer.
Remote access of HMI panels
A Q.station or Q.monixx controller includes a built-in VNC server to access the integrated HMI. The HMI can be accessed via a VNC client or a standard web browser.
To use a VNC client, enter the controller's IP address and, when prompted, type the password “master”.
Alternatively, enter the controller’s IP address in the address bar of a web browser and type the password “master.” Ensure that the Java plugin is enabled in the browser and that the security level in the Java Control Panel is set to Medium.
Only a single VNC client connection can be active at a time.
HMI panels explained

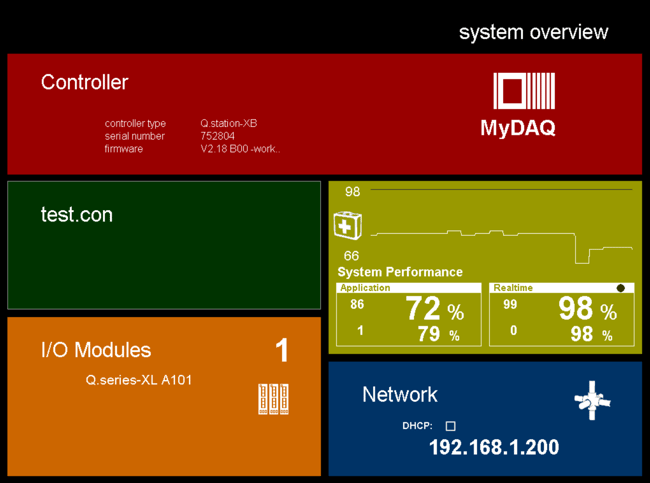

- The main panel provides a quick view of the controller configuration.

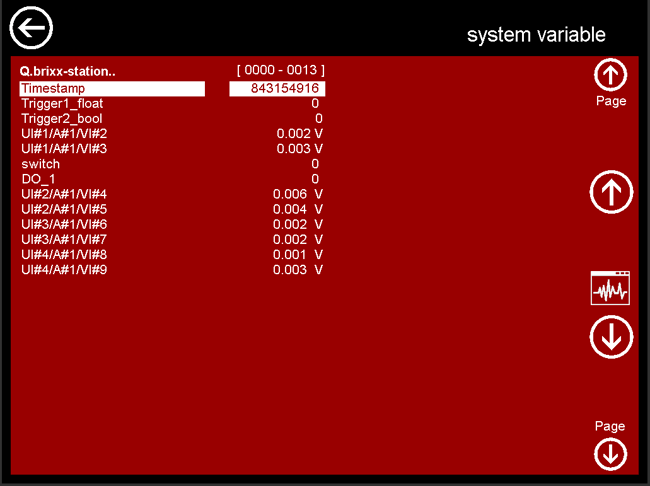

- Red panel: Opens a live list of the I/O values, where a basic Y‑T chart is displayed for each.
-

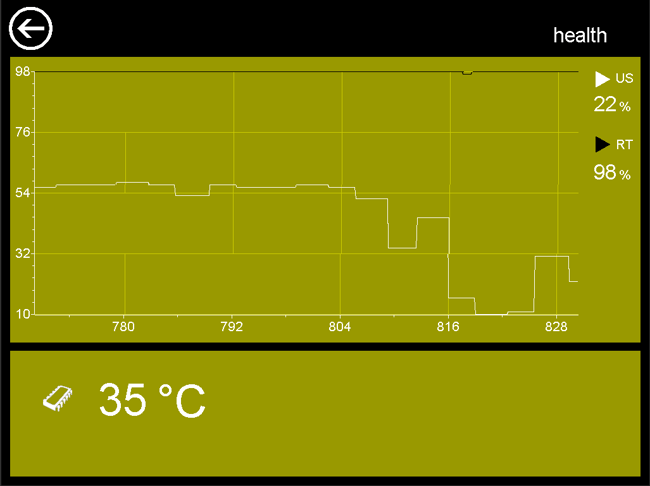

Yellow panel: Displays the system health of the user space and real-time kernel, as well as the CPU temperature.
-

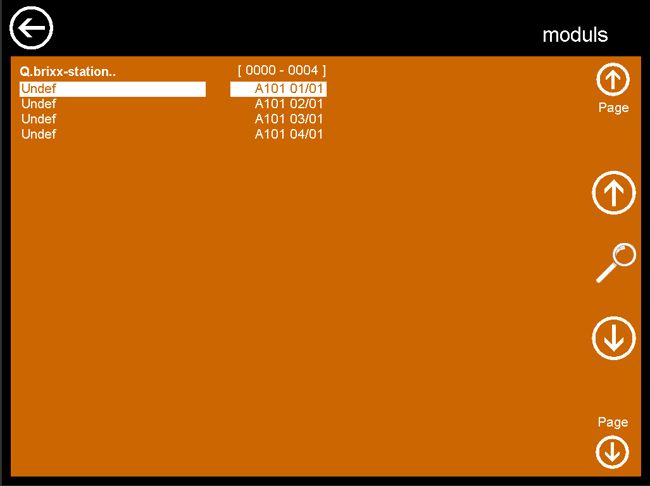

Orange panel: Shows a list of connected measurement modules with their UART and address. Also provides the ability to view a live list of values for each module, along with a Y‑T chart.
-
Green panel: Displays the user space if a custom test.con program has been loaded.
-
Blue panel: Allows viewing and modifying the controller’s network settings.
