Setting Special Parameters for I/O modules

Using a special parameter file allows you to configure specific parameters on the I/O modules that are not accessible through the standard software user interface.

To configure specific parameters, a special parameter file (*.spc) is required. This file is provided by Gantner Instruments and can be loaded onto the module using either GI.bench or ICP 100 configuration software.

Loading the Special Data File with ICP100

For a more detailed description of how to use the ICP 100 software, please refer to the ICP 100 Quick Start Guide.

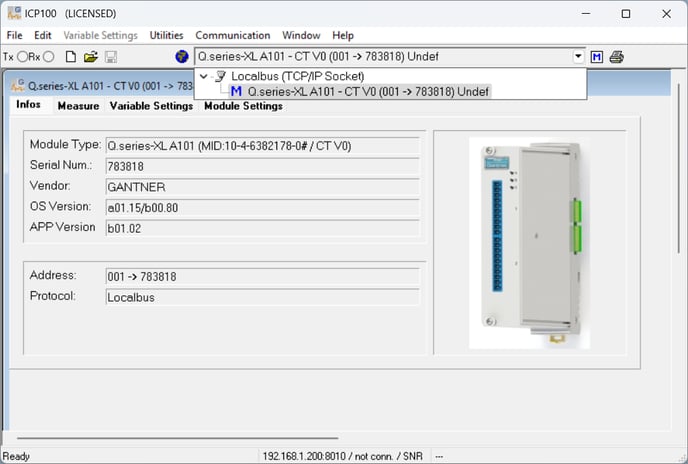

  1. Open ICP 100 and scan the bus. From the dropdown list, select the I/O modules for which the special parameters need to be configured.

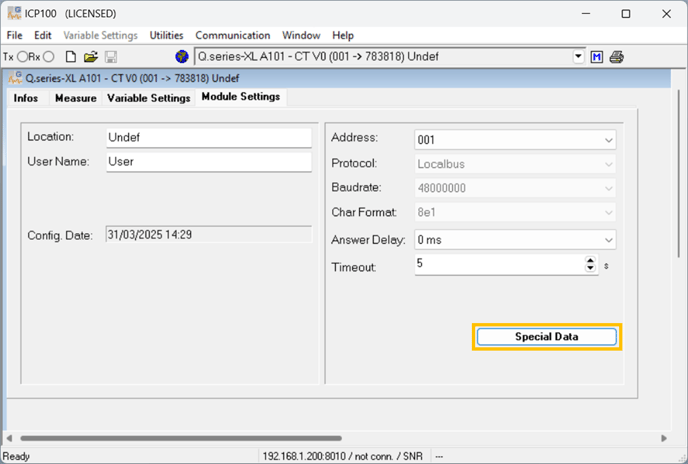

  2. Navigate to the Module Settings tab, click on the Special Data button, and select the special parameter file (*.spc) provided by Gantner Instruments. Note that File Explorer will only display the files that are compatible with the selected I/O module.

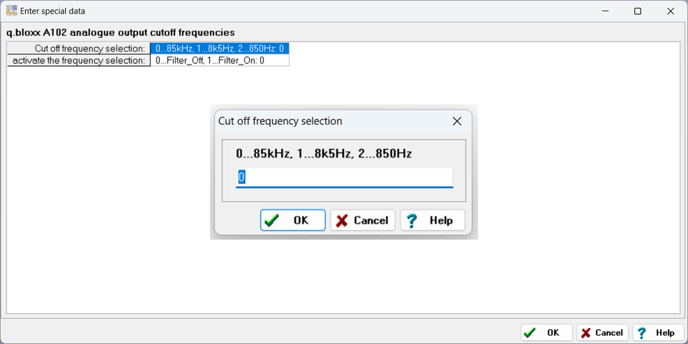

  3. After selecting the special parameter file, a separate window will open to configure the specific parameters. The screenshot below shows an example of a settings window. To edit a parameter, click on the entry field.

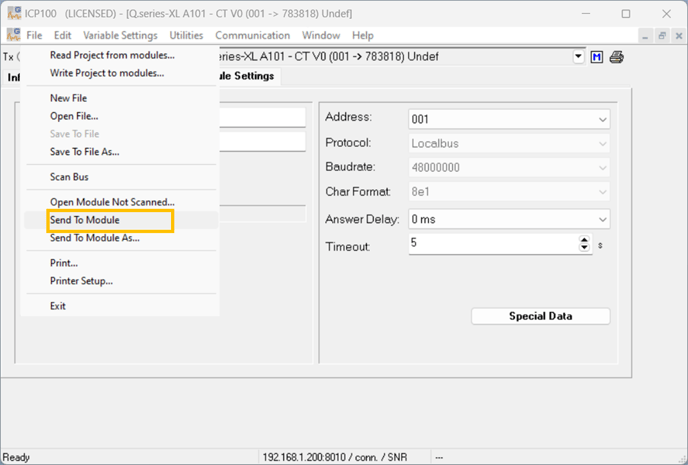

  4. When the parameters have been set, go to File > Send To Module to write the configuration to the module.
