Q.station X & Q.station 101 Connection Details

Connector specifications for Q.station X and Q.station 101 controllers, including details on connection interfaces and mating connectors.

Q.station X connection details

Power supply

Binder 99-0436-19-05

  1. 10-30 VDC power supply for modules

  2. GND for modules

  3. GND external sensor supply

  4. +5..25V external sensor supply

  5. PE (potential equalisation)



Digital Input

LEMO FGG.1B.308.CLADxx (xx is the cable diameter)

Sync

LEMO FGG.00.302.CLAD30Z

CAN bus

LEMO FGG.00.302.CLAD30Z

👉 See also how to setup CAN bus communication



Q.station 101 connection details

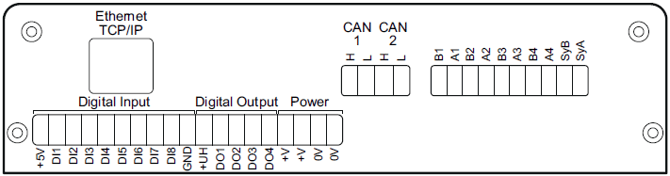

Q.station 101 top view

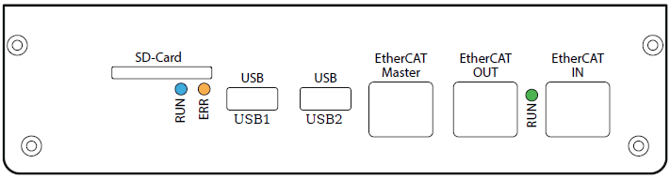

Q.station 101 bottom view

The Q.station 101 has the following ports:

  1. Power: 10-30 VDC, overvoltage and overcurrent protection, ~12W power consumption.

  2. Ethernet: TCP/IP, UDP, Modbus TCP (master/slave), OPC UA, MQTT.

  3. USB/RS-232 (x2): For connecting a USB flash drive for data storage and the connection of USB/serial devices, such as GPS receivers. It can also connect a CAN/USB adapter for CAN or CAN FD communication.

  4. CAN: CAN 2.0 at 1 Mbps

  5. Sync: For external time synchronization or sync to/from another Q.station.

  6. Digital inputs (x6): Configurable as counter, frequency, PWM, status, encoder input for measurement synchronization.

  7. Digital inputs (x4)
