Cable and Connector Wiring Diagrams

Pinout diagrams and info for various cables and connectors

Cable Q.raxx-UART (564124)

Binder to Binder connector

Binder Color Binder Description
1 Brown 1 A
3 Blue 3 B

Cable Q.series-X UART DB-Binder (825528)

DB9 to Binder connector

DSub9 Color Binder Description
3 Red 1 A
8 Green 3 B

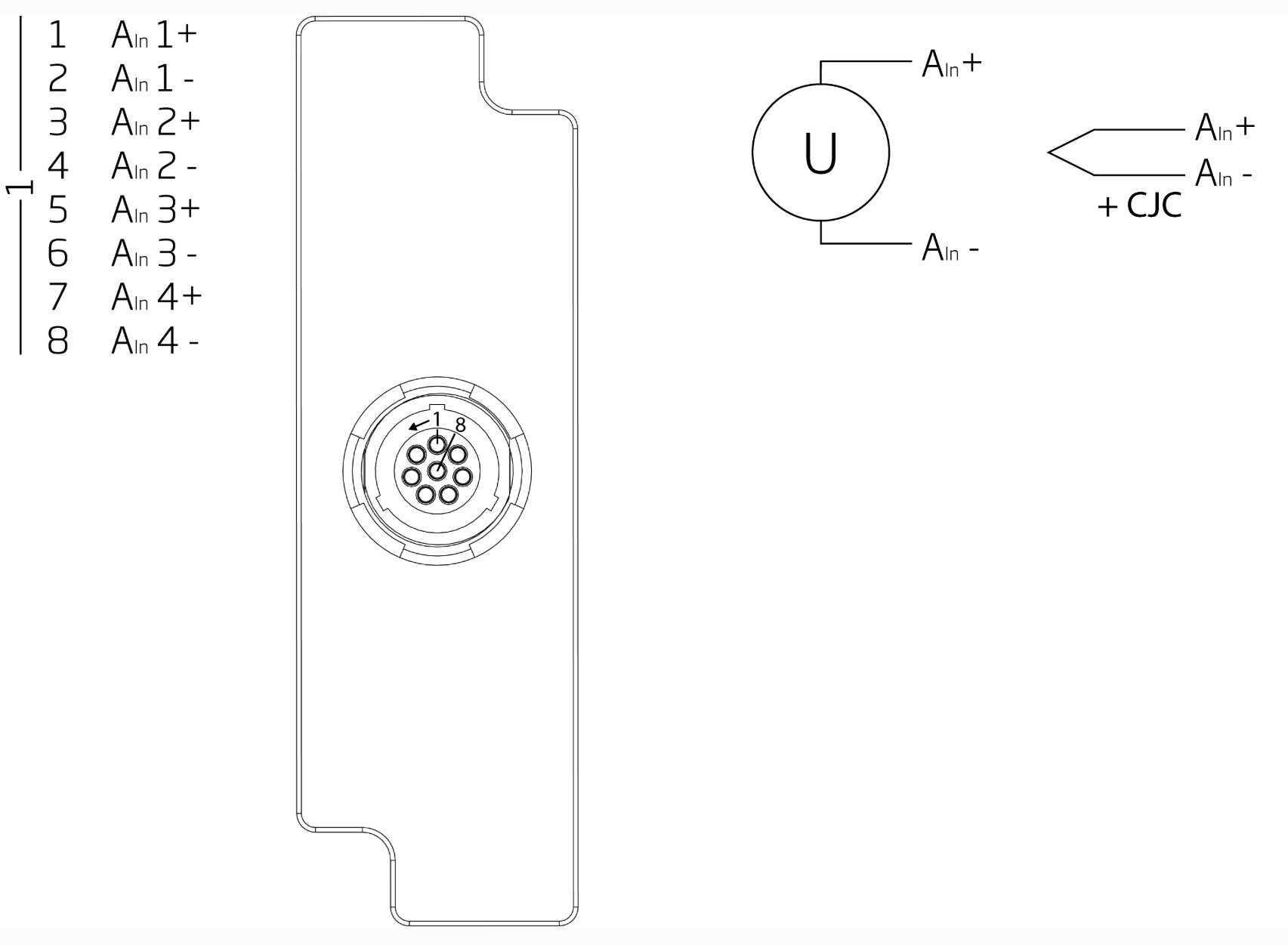

Q.series XL A124 TCK

  • Lemo CFB.H08.SLK.C52GZ (for cable diameter 3,2-5,2 mm)

  • Lemo CFB.H08.SLK.C72GZ (for cable diameter 5,3-7,2 mm)


Important details:

  • REDEL P-Series (2P)

  • B = Coding B

  • H08 = High Voltage, 8 pins
